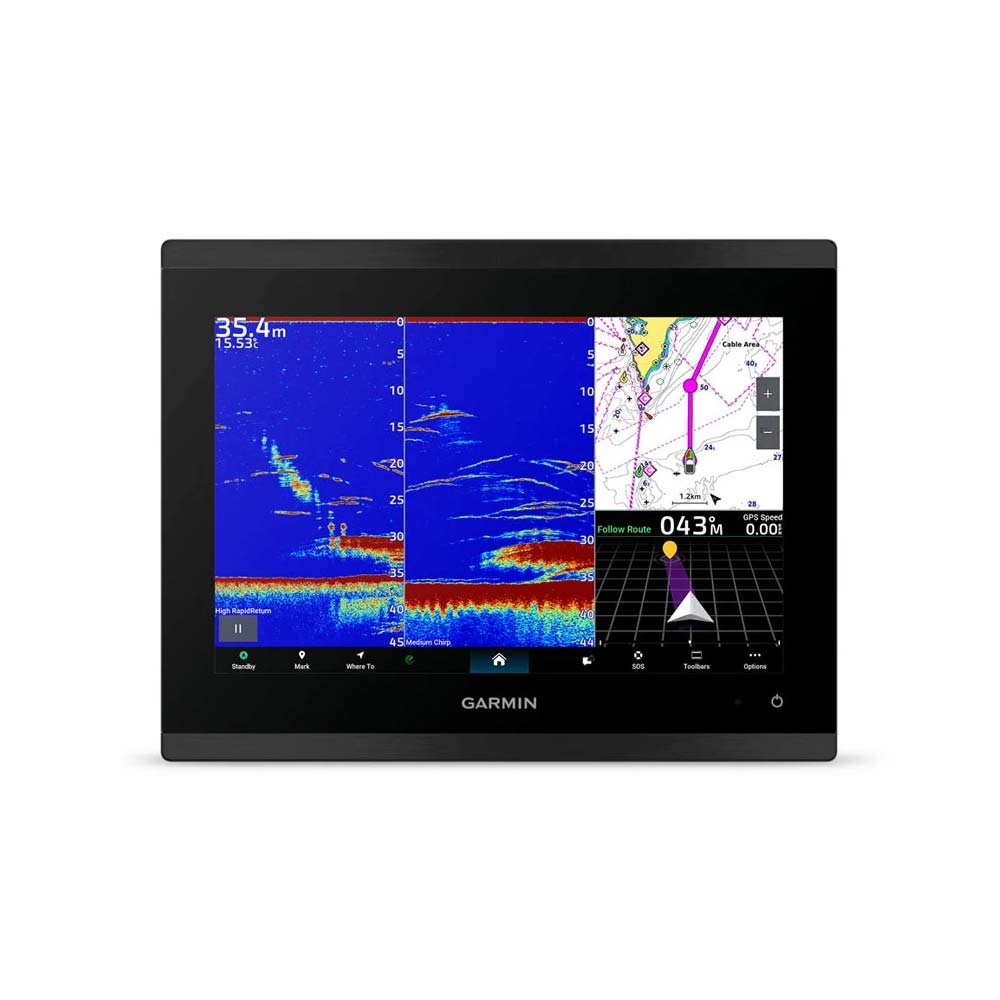

Looking for a Garmin chartplotter that gives you power, clarity, and control on your boat? The Garmin GPSMAP 9000XSV Series delivers all that and more. Available in 10”, 13”, and 17” touchscreen displays, these premium marine chartplotters are designed for anglers and boaties who demand the best.

The 13” and 17” screens feature stunning 4K resolution and a bright Mini LED backlight, so charts, sonar, and entertainment look amazing — even in full sun. Built-in Rapid Return sonar and UHD scanning sonar give you fast, high-definition underwater views, helping you find fish and navigate with confidence.

Stay connected with 5GHz Wi-Fi for quick software and chart updates through the ActiveCaptain app, and use Garmin-compatible charts like Navionics Vision+ for detailed mapping, satellite imagery, and relief shading.

The Garmin 9000 series also supports networking across multiple displays, sonar, radar, and cameras, plus OneHelm digital switching and NMEA 2000 compatibility, making onboard control simple and intuitive.

With a sleek edge-to-edge glass design, the Garmin GPSMAP 9000XSV Series not only looks premium but puts all your boat electronics and navigation in one easy-to-use system.

General

• Dimensions: 26 × 20 × 9.1 cm (10.24″ × 7.87″ × 3.54″)

• Weight: 2.52 kg (5.55 lbs)

• Water Rating: IPX7

• Mounting Options: Flush or flat

• Input: Touchscreen

• Display Type: WUXGA, IPS; Edge Lit backlight

• Display Size: 21.7 × 13.6 × 25.6 cm diagonal (8.54″ × 5.34″ × 10.1″)

• Display Resolution: 1,920 × 1,200 pixels

• Polarised Lens Viewability: Yes


Maps & Memory

• Data Cards: 2 microSD™ cards (rear)

• USB Card Reader: Supported

• Waypoints: 5,000

• Track Points: 50,000

• Tracks: 50 saved tracks

• Navigation Routes: 100


Optional Map Support:

• BlueChart g3 & g3 Vision

• LakeVü g3 & g3 Ultra

• Garmin Navionics+™ & Vision+™

• TOPO 100K

• Garmin Quickdraw Contours

• Raster Chart Support


Sensors & GPS

• GPS, GLONASS, Galileo, BeiDou

• Built-in Receiver: Yes, 10 Hz

• NMEA 2000 & NMEA 0183 Compatible

• Supports WAAS

• Multi-band, multi-constellation GPS


Chartplotter Features

• Smart Mode Compatible

• AIS & DSC

• Fusion-Link™ radio support

• GCV Black Box Sonar Support

• ActiveCaptain® Mobile Planning Compatible

• Voice Commands Supported

• GRID & GRID 20 Compatible

• Wireless Remote Compatible

• Sailing Features: Spoken audio alerts, OneHelm™ support


Electrical

• Power Input: 10–32 Vdc

• Typical Current Draw (12 Vdc): 3.6 A

• Maximum Current Draw (12 Vdc): 4.14 A

• Maximum Power Usage (10 Vdc): 45 W


Sonar Features

• Power Output: 1 kW

• Traditional Sonar: Dual frequency/beam, 1 kW

• Built-in xCHIRP: Supported

• RapidReturn™: Yes (up to 2×)

• ClearVü & SideVü: Supported

• Panoptix™ & LiveScope: Supported


Connections

• NMEA 2000 Ports: 1

• NMEA 0183 Input (Rx): 1

• NMEA 0183 Output (Tx): 1

• Video Input Ports: 1 BNC Composite, 1 HDMI (HDCP compliant)

• Video Output Ports: 1 HDMI

• J1939 Ports: 1

• Garmin BlueNet™ Network Ports: 2

• USB Ports: 1x USB-C

• Bluetooth® Pairing: Yes

• ANT® Connectivity: Yes

• Garmin Wi-Fi Network: 2.4 GHz & 5 GHz

• Audio Output: Supported
