Key Features

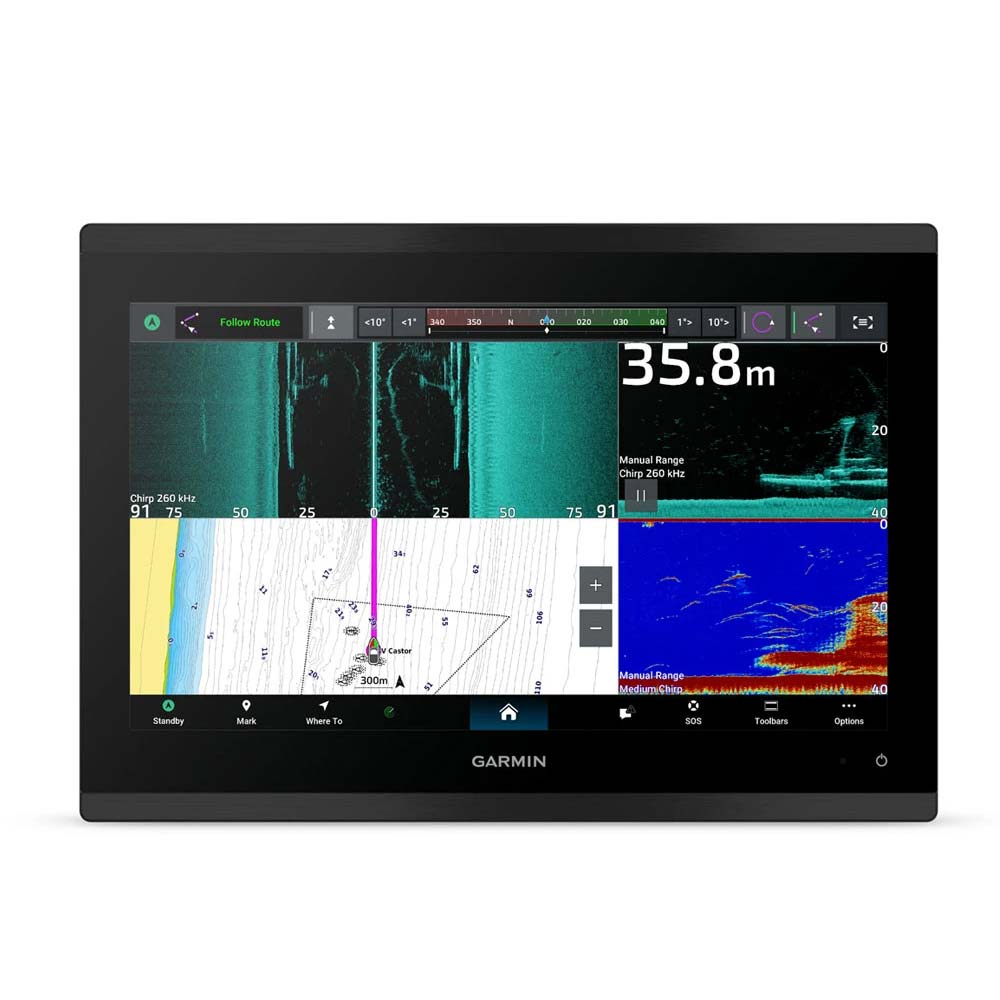

• 13” 4K Ultra HD touchscreen display for exceptional clarity and detail

• Mini-LED backlighting for superior brightness and contrast in all lighting conditions

• Built-in UHD ClearVü™ and SideVü™ sonar capability

• RapidReturn™ sonar processing for fast, detailed underwater imaging

• Full Garmin Marine Network compatibility for seamless system integration

• Supports Panoptix™ LiveScope™ sonar systems

• Connects with Garmin radar, autopilots, trolling motors and marine accessories

Garmin GPSMAP 9013XSV FAQ

Is the Garmin GPSMAP 9013XSV available in New Zealand?

Yes. The Garmin GPSMAP 9013XSV chartplotter is available in New Zealand through East Coast Marine Electronics, with secure nationwide shipping.

Does the Garmin GPSMAP 9013XSV include sonar?

Yes. The Garmin 9013XSV includes built-in UHD ClearVü and SideVü sonar, and supports high-performance transducers such as the TM275LHW for serious offshore fishing.

What is the difference between the Garmin 9010XSV, 9013XSV and 9017XSV?

The main difference is screen size.

• Garmin 9010XSV – 10-inch display

• Garmin 9013XSV – 13-inch display display with full 4K resolution

• Garmin 9017XSV – 17-inch display with full 4K resolution

All models feature Garmin’s powerful processing, advanced sonar capability, and full marine network compatibility.

East Coast Marine Electronics specialises in Garmin marine electronics sales and installation across New Zealand, including chartplotters, transducers, radar, and autopilot systems.

• GPSMAP 9013xsv premium chartplotter
• Power Cable
• Backbone/drop cable (2 metres) and T-connector for the NMEA 2000® network

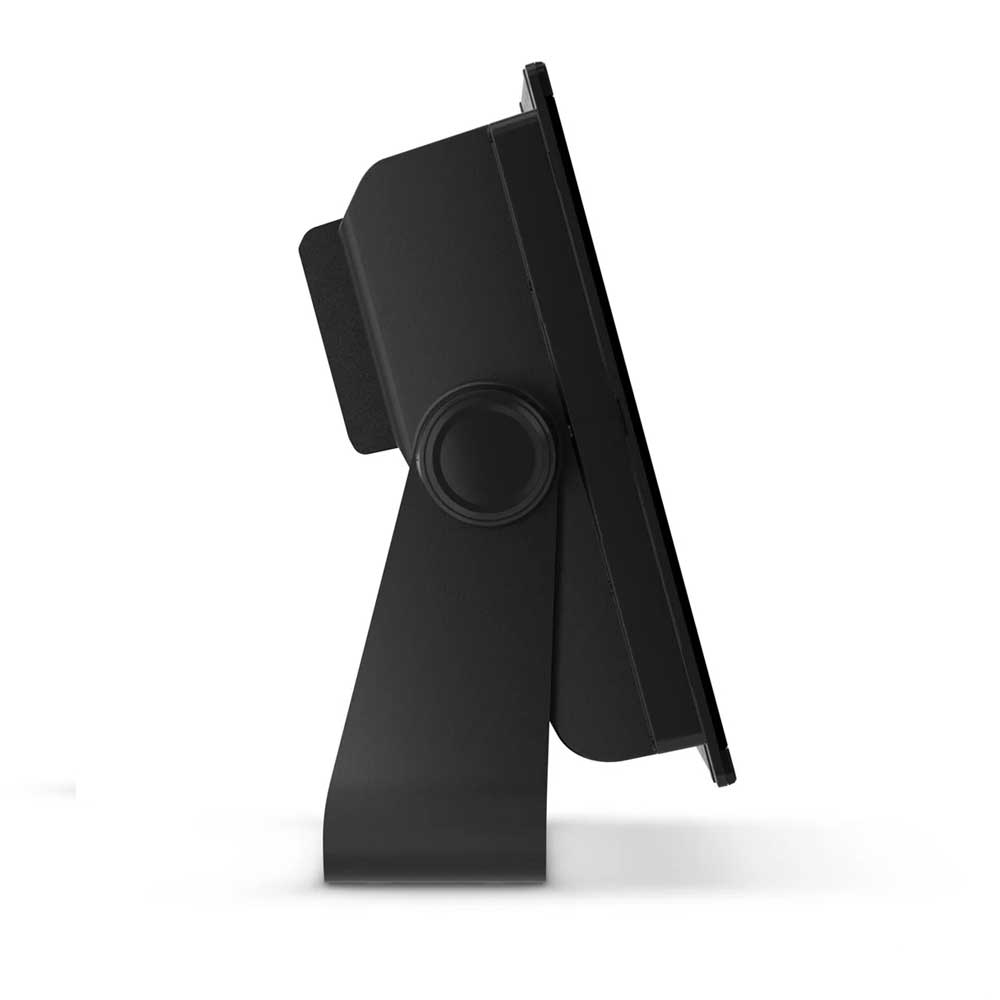

• Bail mount with knobs
• Flush mount kit
• Protective Cover
• Trim piece snap covers
• Documentation

General

• Dimensions: 33.5 × 23.4 × 9.1 cm (13.2″ × 9.19″ × 3.56″)

• Weight: 4.13 kg (9.1 lbs)

• Water Rating: IPX7

• Mounting Options: Flush or flat

• Input: Touchscreen

• Display Type: 4K IPS, Mini-LED backlight with local dimming

• Display Size: 29.4 × 16.5 cm diagonal (11.57″ × 6.50″ × 13″)

• Display Resolution: 3,840 × 2,160 pixels

• Polarised Lens Viewability: Yes


Maps & Memory

• Data Cards: 2 microSD™ cards (rear)

• USB Card Reader: Supported

• Waypoints: 5,000

• Track Points: 50,000

• Tracks: 50 saved tracks

• Navigation Routes: 100


Optional Map Support:

• BlueChart g3 & g3 Vision

• LakeVü g3 & g3 Ultra

• Garmin Navionics+™ & Vision+™

• TOPO 100K

• Garmin Quickdraw Contours

• Raster Chart Support


Sensors & GPS

• GPS, GLONASS, Galileo, BeiDou

• Built-in Receiver: Yes, 10 Hz

• NMEA 2000 & NMEA 0183 Compatible

• Supports WAAS

• Multi-band, multi-constellation GPS


Chartplotter Features

• Smart Mode Compatible

• AIS & DSC

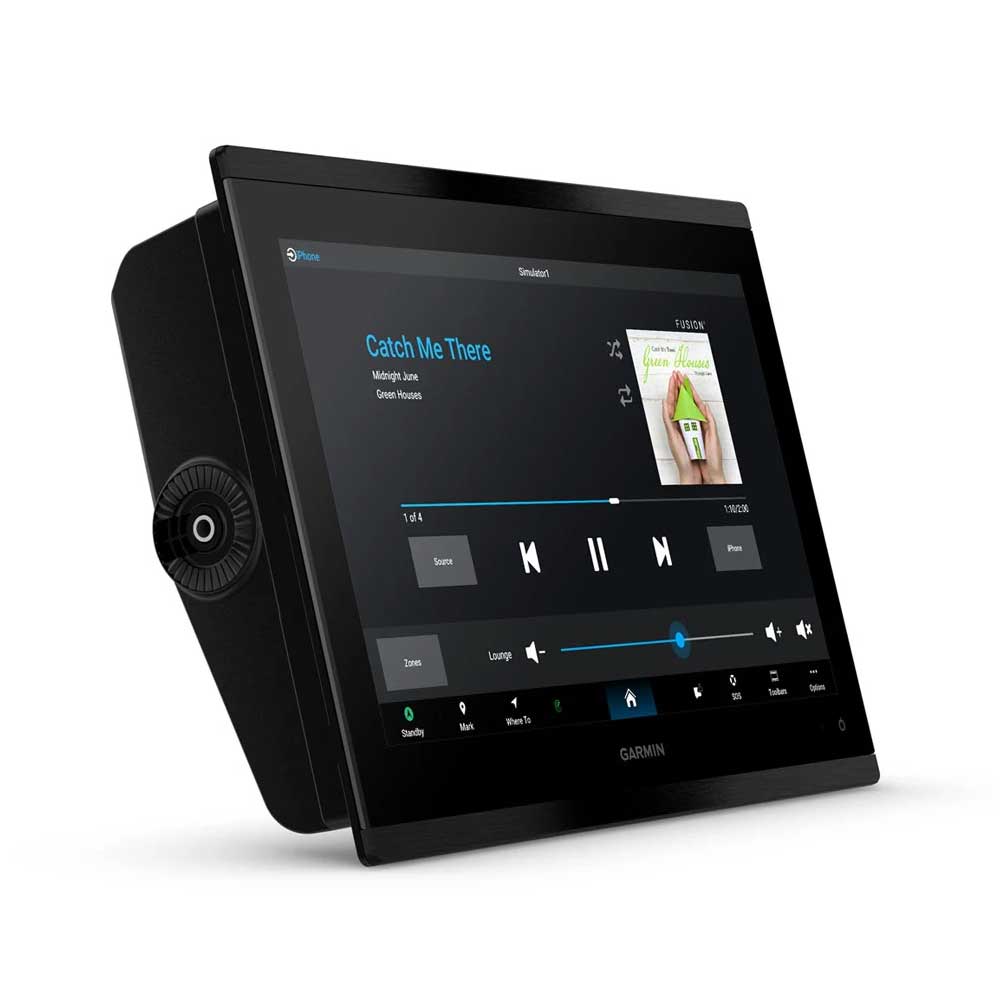

• Fusion-Link™ radio support

• GCV Black Box Sonar Support

• ActiveCaptain® Mobile Planning Compatible

• Voice Commands Supported

• GRID & GRID 20 Compatible

• Wireless Remote Compatible

• Sailing Features: Spoken audio alerts, OneHelm™ support


Electrical

• Power Input: 10–32 Vdc

• Typical Current Draw (12 Vdc): 4.7 A

• Maximum Current Draw (12 Vdc): 5.25 A

• Maximum Power Usage: 63 W


Sonar Features

• Power Output: 1 kW

• Traditional Sonar: Dual frequency/beam, 1 kW

• Built-in xCHIRP: Supported

• RapidReturn™: Yes

• ClearVü & SideVü: Supported

• Panoptix™ & LiveScope: Supported

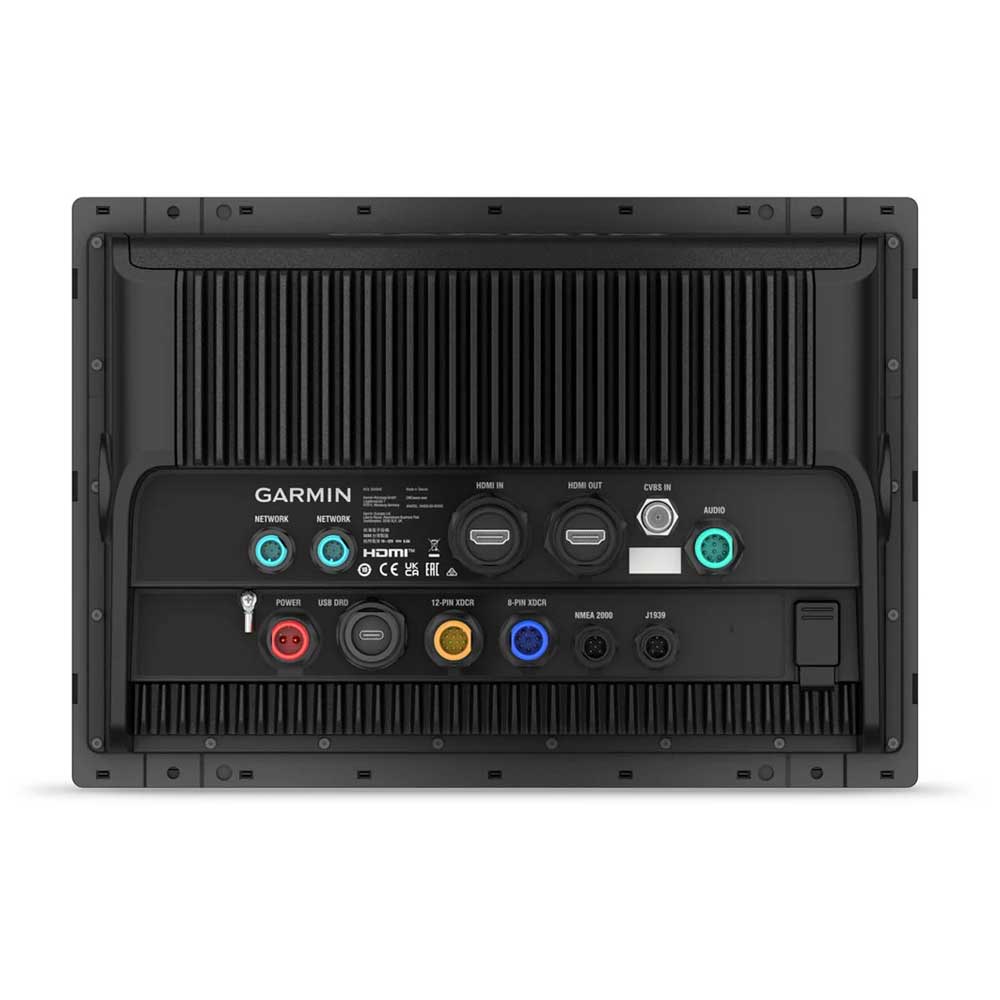

Connections

• NMEA 2000 Ports: 1

• NMEA 0183 Input (Rx): 1

• NMEA 0183 Output (Tx): 1

• Video Input Ports: 1 BNC Composite, 1 HDMI (HDCP compliant)

• Video Output Ports: 1 HDMI

• J1939 Ports: 1

• Garmin BlueNet™ Network Ports: 2

• USB Ports: 1x USB-C

• Bluetooth® Pairing: Yes

• ANT® Connectivity: Yes

• Garmin Wi-Fi Network: 2.4 GHz & 5 GHz

• Audio Output: Supported
