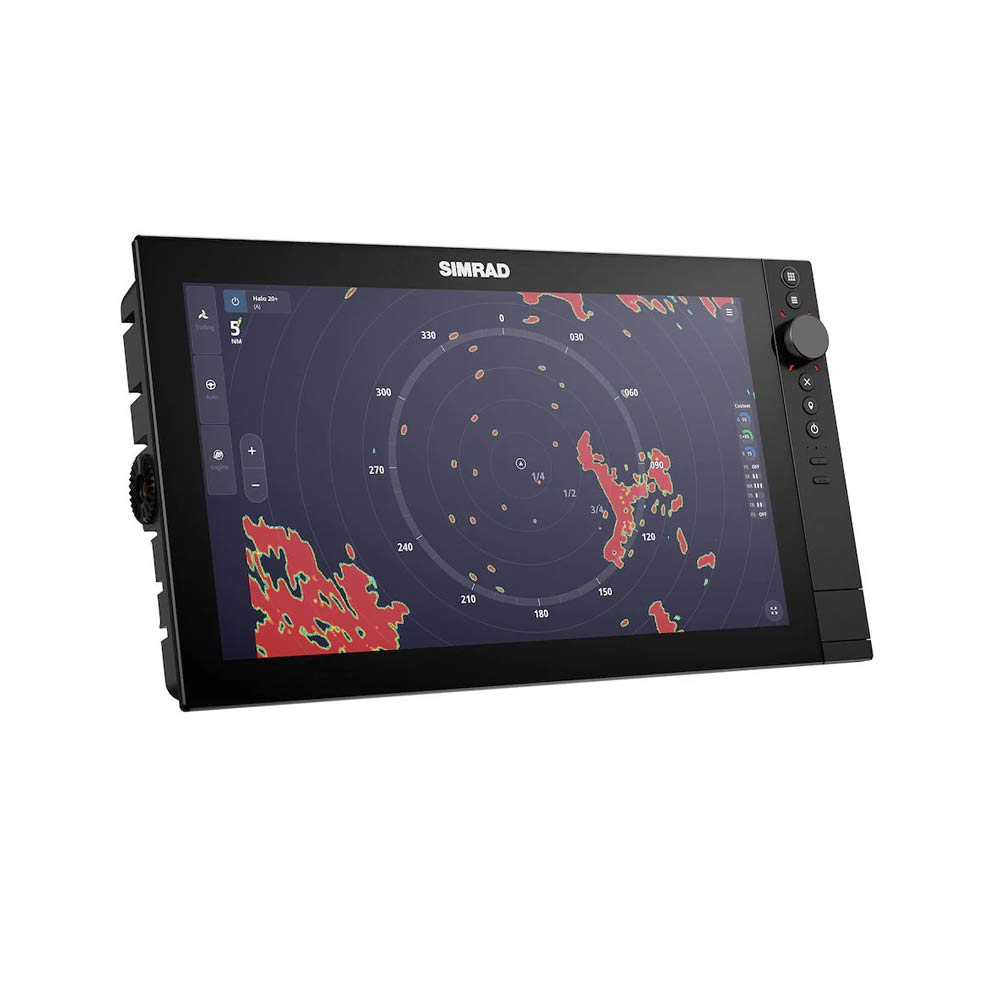

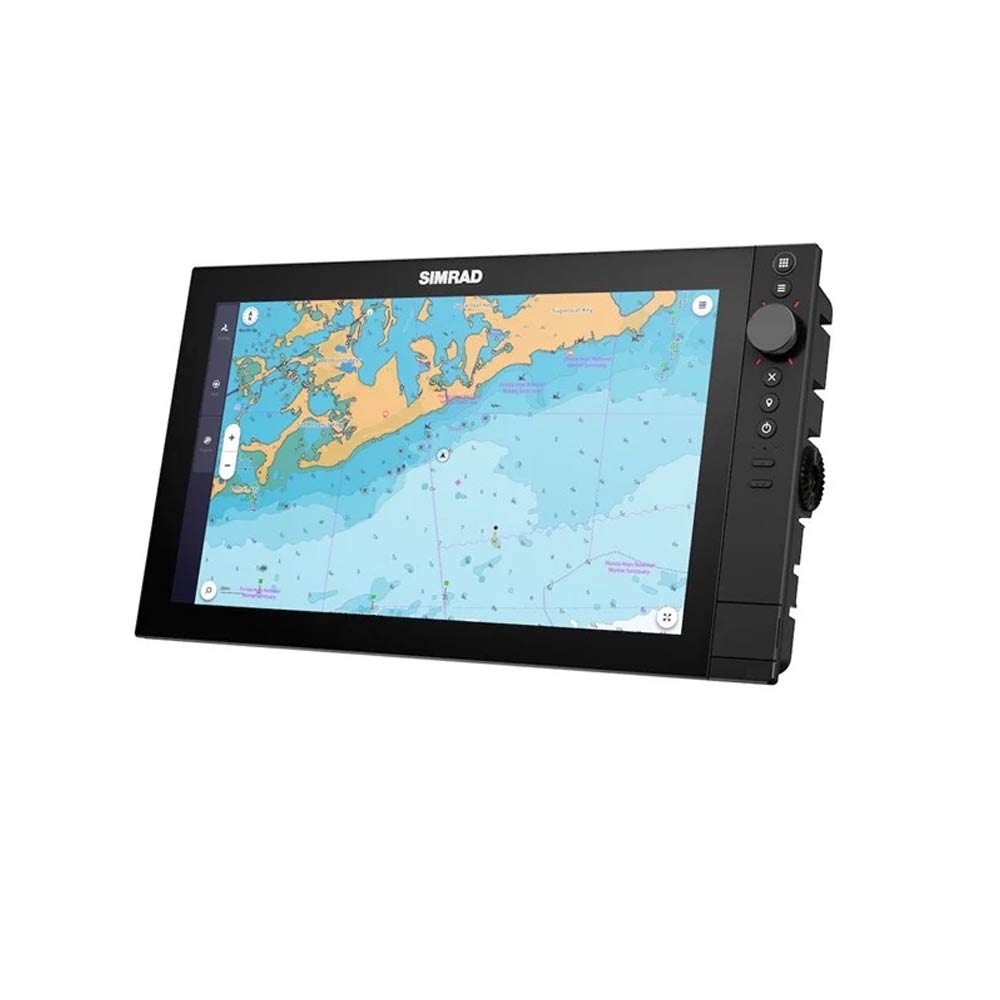

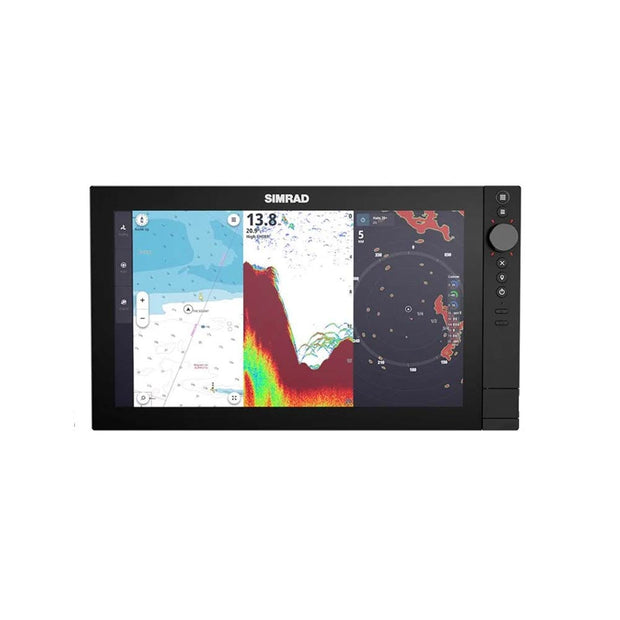

The Simrad NSS 4 Series delivers next-level clarity, speed, and control for serious fishers and offshore adventurers. The 16” model features a huge SolarMAX™ IPS touchscreen display, perfect for larger hardtops, game boats, and launches where maximum screen real estate matters.

With a powerful processor, the NSS 4 16” offers smooth, fast control with both touchscreen and keypad operation. It’s compatible with a wide range of sonar options including CHIRP, SideScan, DownScan, and Active Imaging™. Built-in GPS and world basemap comes standard, with support for C-MAP®, Navionics®, and Simrad charts.

The NSS 4 16” integrates effortlessly with your existing marine electronics setup using NMEA 2000® and Ethernet networking, making it the perfect centrepiece for your Simrad system.

Key Features:

Massive 16” SolarMAX™ IPS touchscreen display

Ultra-fast processor for responsive, seamless operation

Compatible with CHIRP, SideScan, DownScan, and Active Imaging™ sonar

Supports C-MAP®, Navionics®, and Simrad charts

Built-in 10 Hz GPS receiver and world basemap

NMEA 2000® and Ethernet networking

Dual control via touchscreen and keypad

Ideal for game boats, launches, and larger trailer boats

Buy online now or contact East Coast Marine Electronics for expert advice, package deals, and mobile installation services around the Bay of Plenty.

Display Size: 16" SolarMAX™ IPS

Resolution: 1920 x 1080 pixels (Full HD)

Display Type: Touchscreen with keypad

Sonar Compatibility: CHIRP, SideScan, DownScan, Active Imaging™

Preloaded Chart: World Basemap

Chart Compatibility: C-MAP®, Navionics®, Simrad charts

GPS Receiver: 10 Hz built-in

Networking: NMEA 2000®, Ethernet

Waypoints: 10,000

Routes: 500

Track Points: 50,000

Video Input: 1 x Composite

Video Output: HDMI (1080p)

Power Supply: 12/24V DC

Power Consumption: Max 40W

Waterproof Rating: IPX6 / IPX7

Dimensions (WxHxD): 410 x 262 x 98 mm

Weight: 4.5 kg
