The Simrad NSS 4 Series is the latest evolution of Simrad’s top-tier chartplotter/fishfinder range, offering faster, brighter, and smarter technology for serious boat owners.

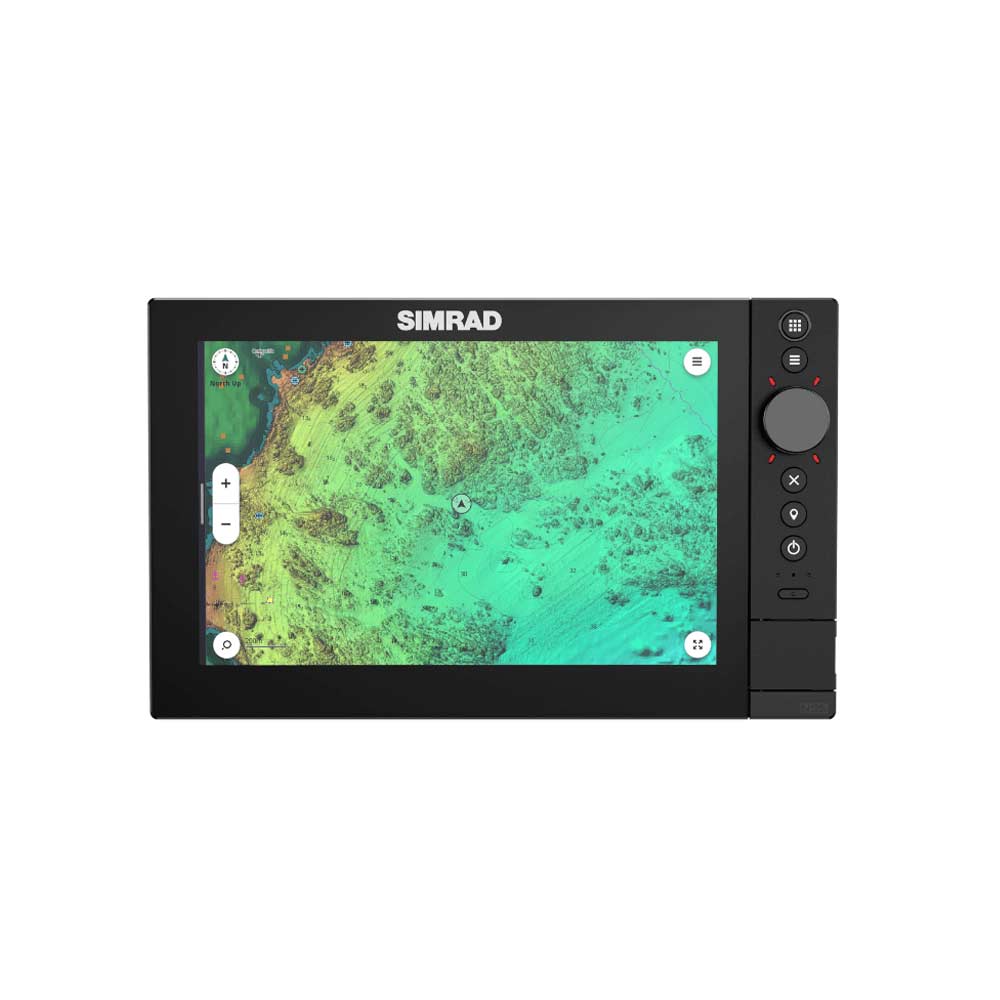

The 10” model features a crisp SolarMAX™ IPS display, lightning-fast processor, and support for the latest sonar and navigation tools — making it the perfect option for boats of all sizes.

Key Features:

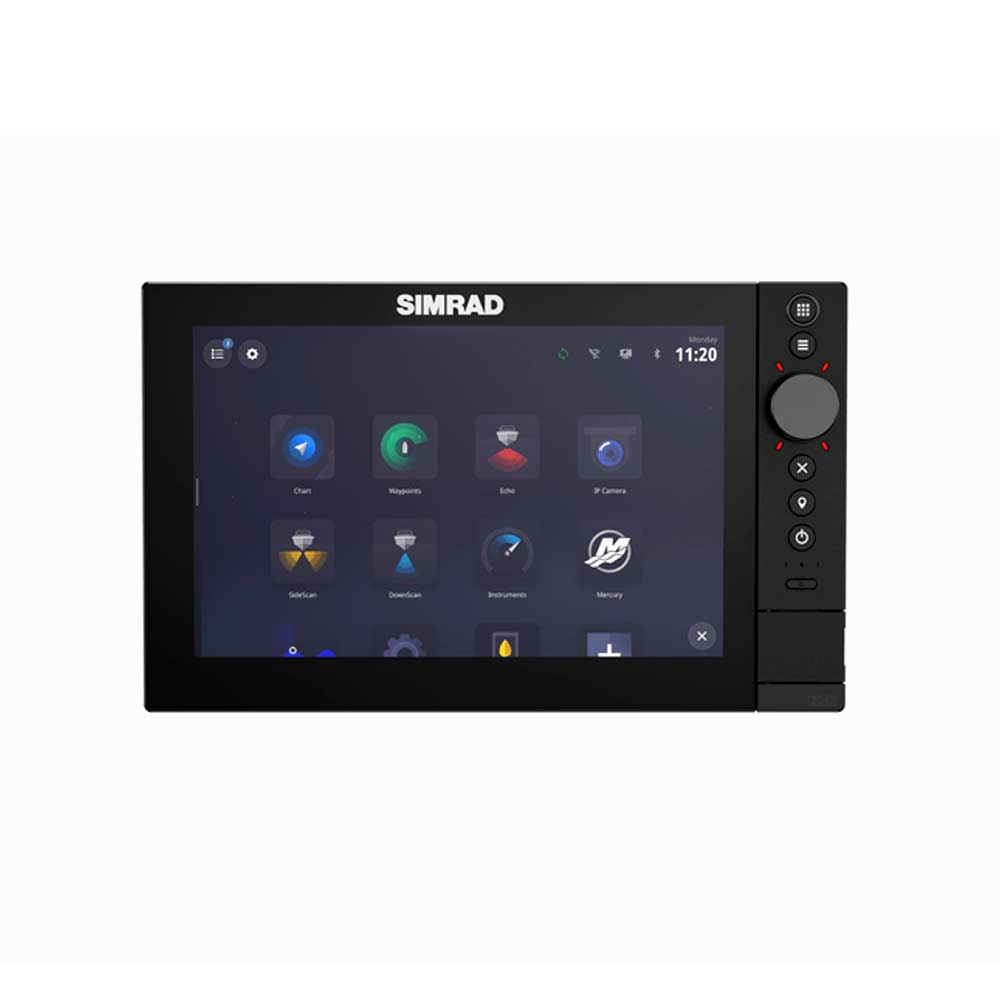

High-definition 10” SolarMAX™ IPS touchscreen — clear and bright in all conditions, even in direct sunlight

Ultra-fast processor for smooth screen transitions and instant response

Supports CHIRP sonar, SideScan, DownScan, and Active Imaging™

Compatible with C-MAP®, Navionics®, and Simrad charts

Built-in world basemap with optional chart card upgrades

NMEA 2000® networking for seamless connection to autopilots, VHF, and other marine electronics

Simple, intuitive touchscreen and keypad control

Perfect for:

• Trailer boats, sportfishers, and launches
• New installations or replacing older MFDs
• Boaties wanting sharp, reliable sonar and chartplotting with future-ready tech

Display Size: 10" SolarMAX™ IPS

Resolution: 1280 x 800 pixels

Display Type: Touchscreen with keypad

Sonar Compatibility: CHIRP, SideScan, DownScan, Active Imaging™

Preloaded Chart: World Basemap

Chart Compatibility: C-MAP®, Navionics®, Simrad charts

GPS Receiver: 10 Hz built-in

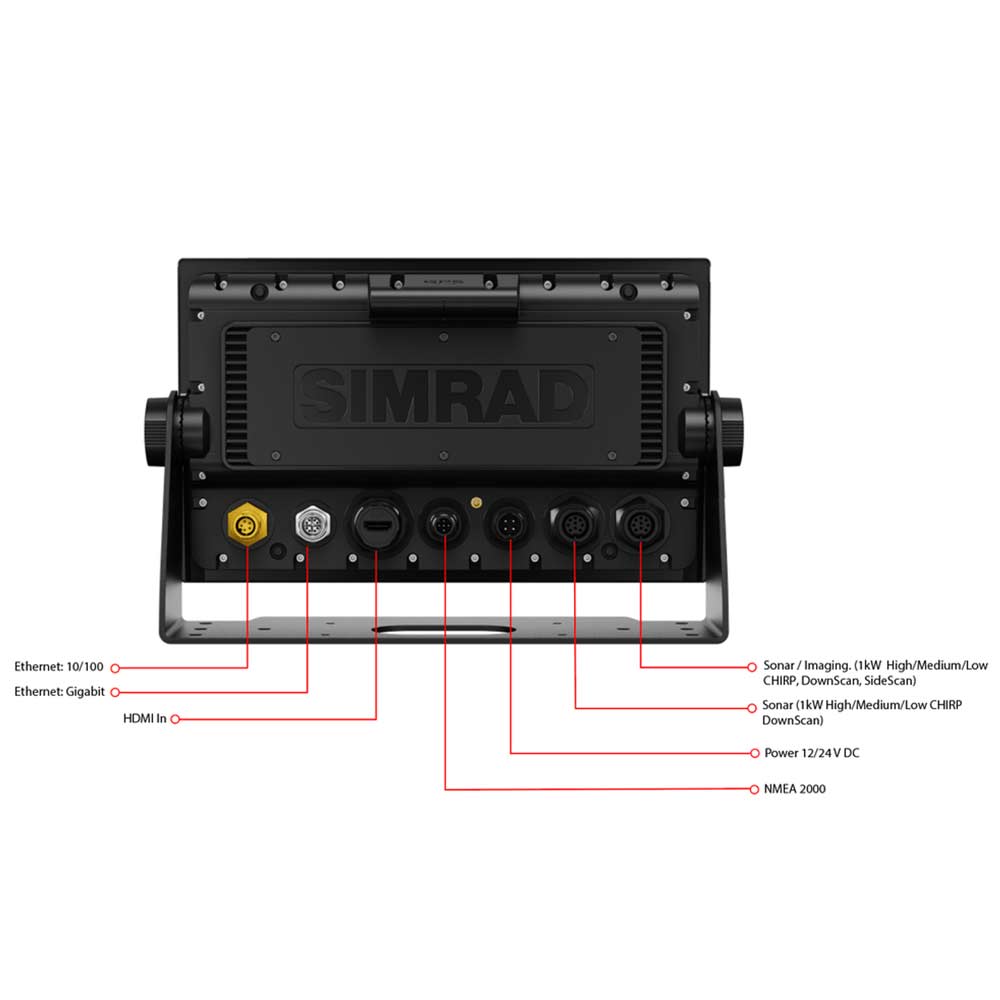

Networking: NMEA 2000®, Ethernet

Waypoints: 10,000

Routes: 500

Track Points: 50,000

Video Input: 1 x Composite

Video Output: HDMI (1080p)

Power Supply: 12/24V DC

Power Consumption: Max 32W

Waterproof Rating: IPX6 / IPX7

Dimensions (WxHxD): 287 x 183 x 98 mm

Weight: 2.7 kg
