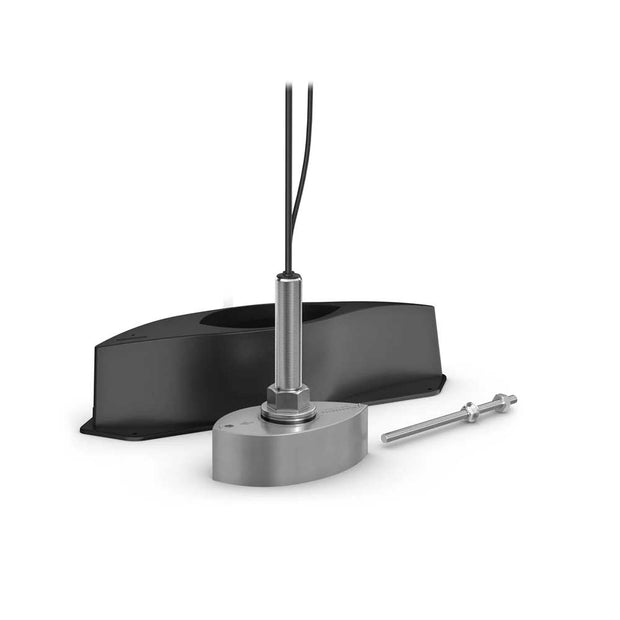

Garmin Panoptix PS70 Transducer with fairing block

$9,399.00

Tax included.

The Garmin Panoptix PS70 Transducer allows you to see live sonar views up to 300 metres below the surface, thanks to its powerful RapidReturn sonar technology. With a wide 120 degree viewing angle, this stainless steel thru-hull transducer is a game fishing weapon for serious anglers. Find the bait and mark the game fish.

Estimated delivery 2-5 working days.

Secure and trusted checkout with

  • American Express
  • Mastercard
  • Shop Pay
  • Visa

Description

SEE FISH LIVE. CATCH FISH DEEP.

The Panoptix PS70 stainless steel thru-hull transducer is powered by Garmin RapidReturn sonar, which gives you live sonar views up to 300 metres below the surface.

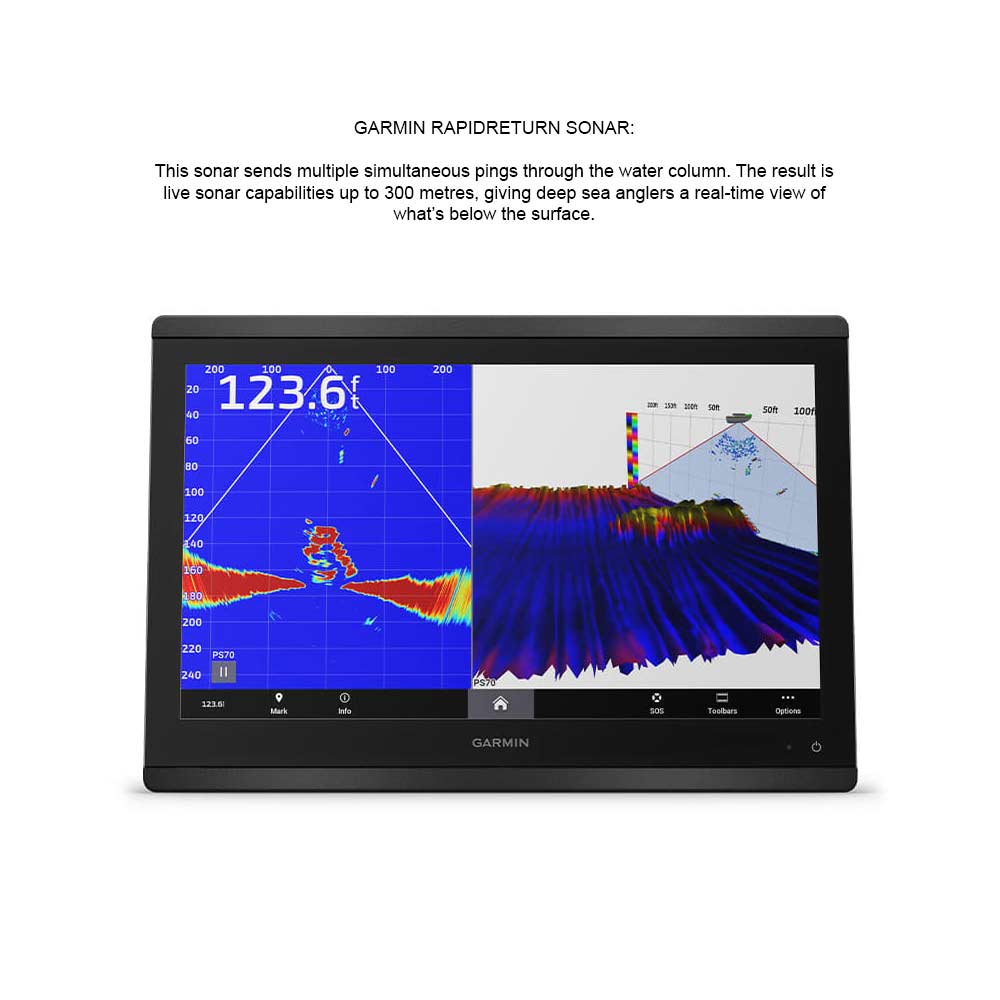

GARMIN RAPIDRETURN SONAR

This sonar sends multiple simultaneous pings through the water column. The result is live sonar capabilities up to 300 metres, giving deep sea anglers a real-time view of what’s below the surface.

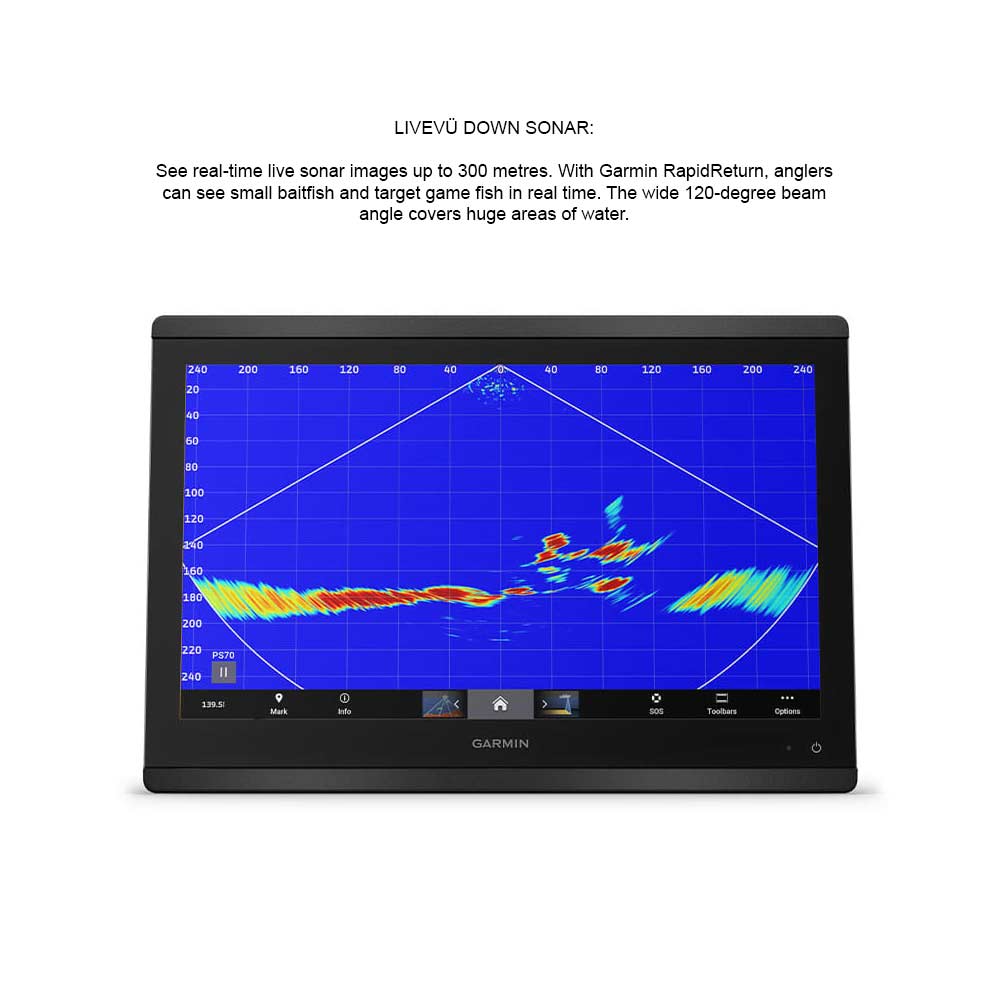

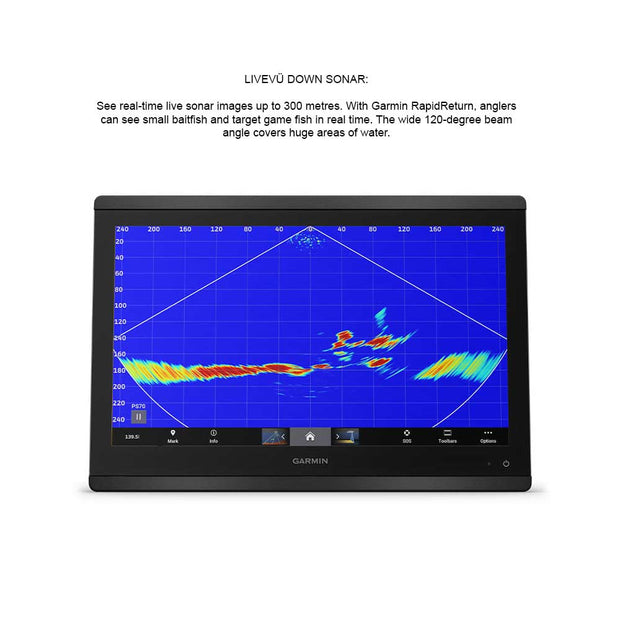

LIVEVÜ DOWN SONAR

See real-time live sonar images up to 300 metres. With Garmin RapidReturn, anglers can see small baitfish and target game fish in real time. The wide 120-degree beam angle covers huge areas of water.

TRADITIONAL SONAR

View crisp, clear fish arches with excellent separation of targets under the boat.

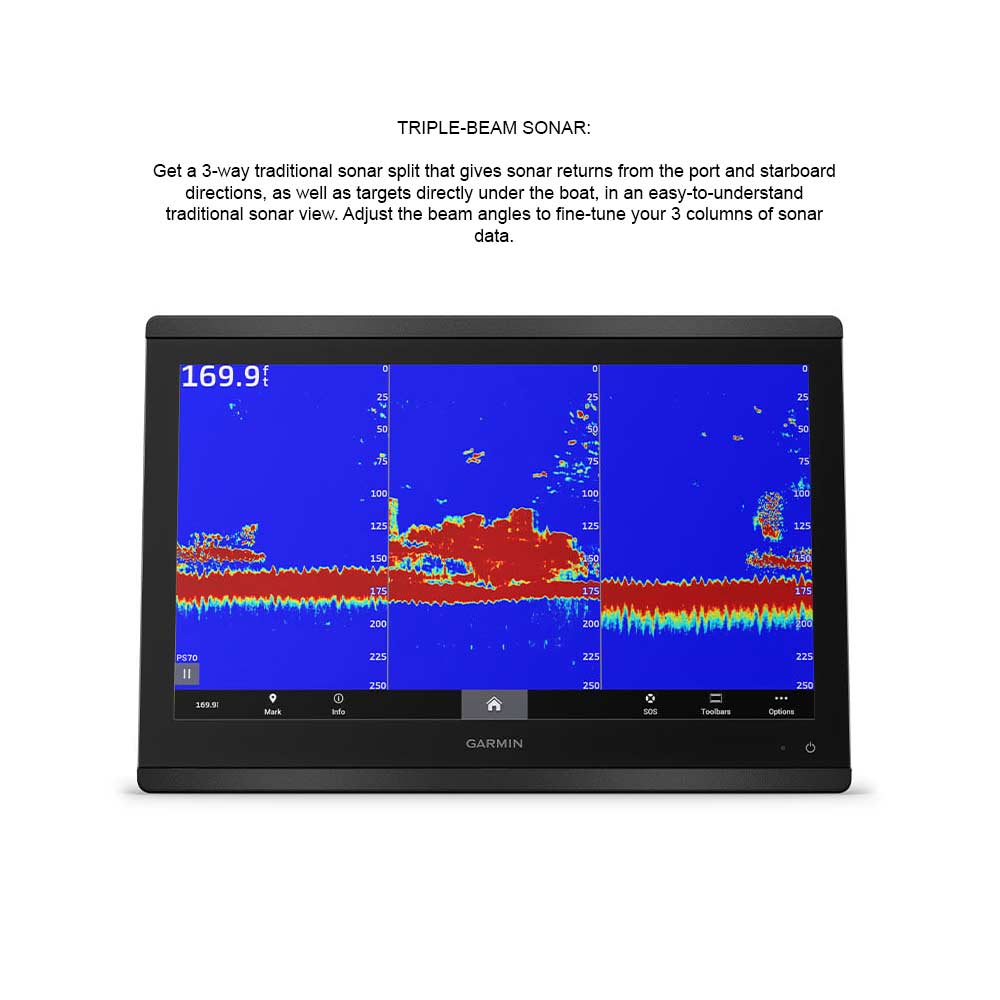

TRIPLE-BEAM SONAR

Get a 3-way traditional sonar split that gives sonar returns from the port and starboard directions, as well as targets directly under the boat, in an easy-to-understand traditional sonar view. Adjust the beam angles to fine-tune your 3 columns of sonar data.

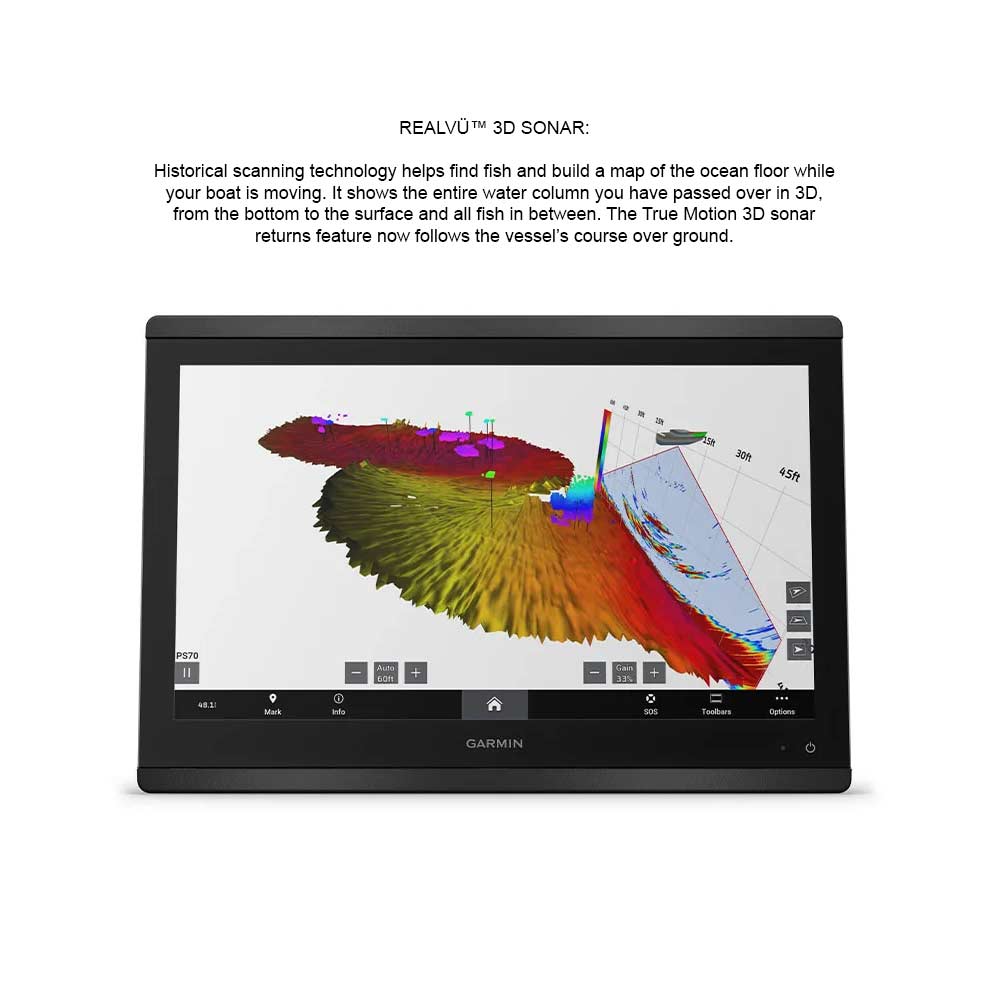

REALVÜ 3D SONAR

Historical scanning technology helps find fish and build a map of the ocean floor while your boat is moving. It shows the entire water column you have passed over in 3D, from the bottom to the surface and all fish in between. The True Motion 3D sonar returns feature now follows the vessel’s course over ground.

QUICKDRAW CONTOURS FEATURE

Survey areas of the ocean floor in great detail. New QuickDraw Contours feature improvement allows users to survey wide swaths of the ocean floor, even at depths up to 300 metres.

HIGH-POWER SONAR

800-watt power output gives you stronger sonar penetration through the water.

IMAGE STABILISATION

An internal sensor will stabilise sonar returns, so you see a clear view even in rough waters.

WIDE SONAR BEAM

Locate bait and fish quickly with wide 120-degree by 8-degree sonar beam, which covers more of the water column at once.

LIVE SONAR DISPLAY RATE

Panoptix PS70 will display at a minimum of 10 frames per second (6 to 8 times faster than the competition), which results in faster sonar returns.


Whats in the box

  • PS70 down-looking thru-hull down transducer
  • Fairing block
  • Stainless steel thru-hull mounting hardware
  • Power cable
  • Network cable 12 metres (40 ft) with network adapter
  • Documentation
