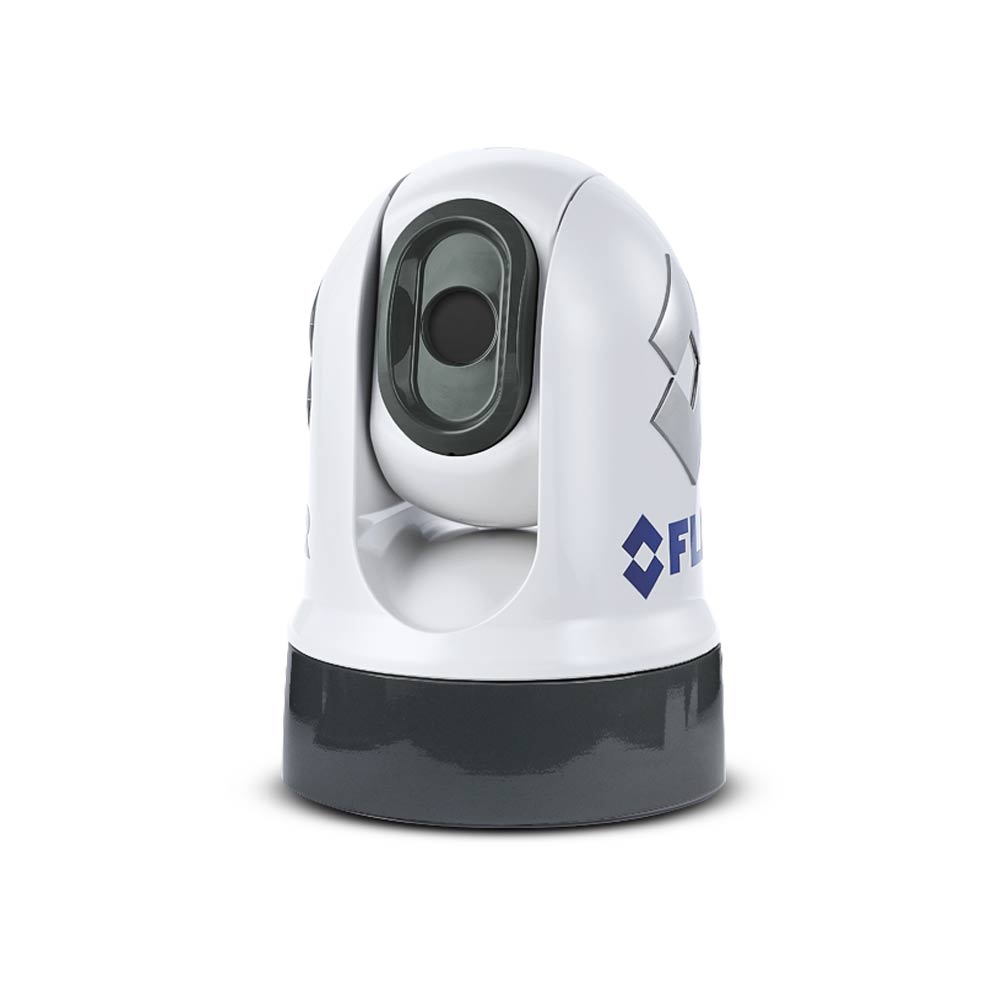

The FLIR M232 is a compact, high-performance thermal camera designed to enhance your situational awareness on the water. With its 320 × 240 resolution thermal imaging and pan/tilt capability, the M232 helps you detect obstacles, boats, and people in the water—even in total darkness or fog.

Key Features:

Clear Thermal Imaging – 320 × 240 resolution for crisp, detailed images.
Pan & Tilt Functionality – Scan the horizon with flexible movement.
Enhances Safety – Detect hazards, other vessels, and floating debris in low visibility conditions.
Integration with MFDs – Compatible with Garmin, Simrad, Raymarine, and other leading brands.
Compact & Lightweight – Ideal for small to mid-sized boats.

📞 Need expert advice or installation? Contact East Coast Marine Electronics today!

FLIR M200 SPECIFICATIONS

Detector Type320 × 240 VOx Microbolometer
Video Refresh Rate: 9 Hz
Field of View24° × 18°
E-Zoom 2x
Image ProcessingFLIR Proprietary Digital Detail Enhancement

System Specifications
Pan/Tilt RangePan: 360deg (continuos), Tilt: +110°, -90°
Image Processing: FLIR Propriety Digital Detail Enhancement™
Video Output: H264 IP Video stream
12 or 24 VDC – 15 Watts (typical) 18 W (max)


Environmental
Operating Temperature Range: -13°F to +131°F (-25°C to +55°C)
Storage Temperature Range: -30°F to +158°F (-30°C to +70°C)
Relative Humidity: 93% max
Vibration: IEC 60945; MIL-STD-810E
Salt Mist: ASTM B117
Wind speed: 100 mph (161 kph)
EMIIEC 60945
Waterproof Rating: IP-67
Drop Test Rating: 1m drop (in packaging)

Physical
2.7 kg w/o top-down riser. 3.0 kg w/ top-down riser
Size: 161.1 (dia.@ base) x 229.3 (ht.) mm

Range Performance

Detect a 30-foot Vessel1.0nm (1850m)Detect Human Sized Target0.19 nm (357m)NATO Target 2.3m x 2.3m at 50 Pct.0.54 nm (864m)
