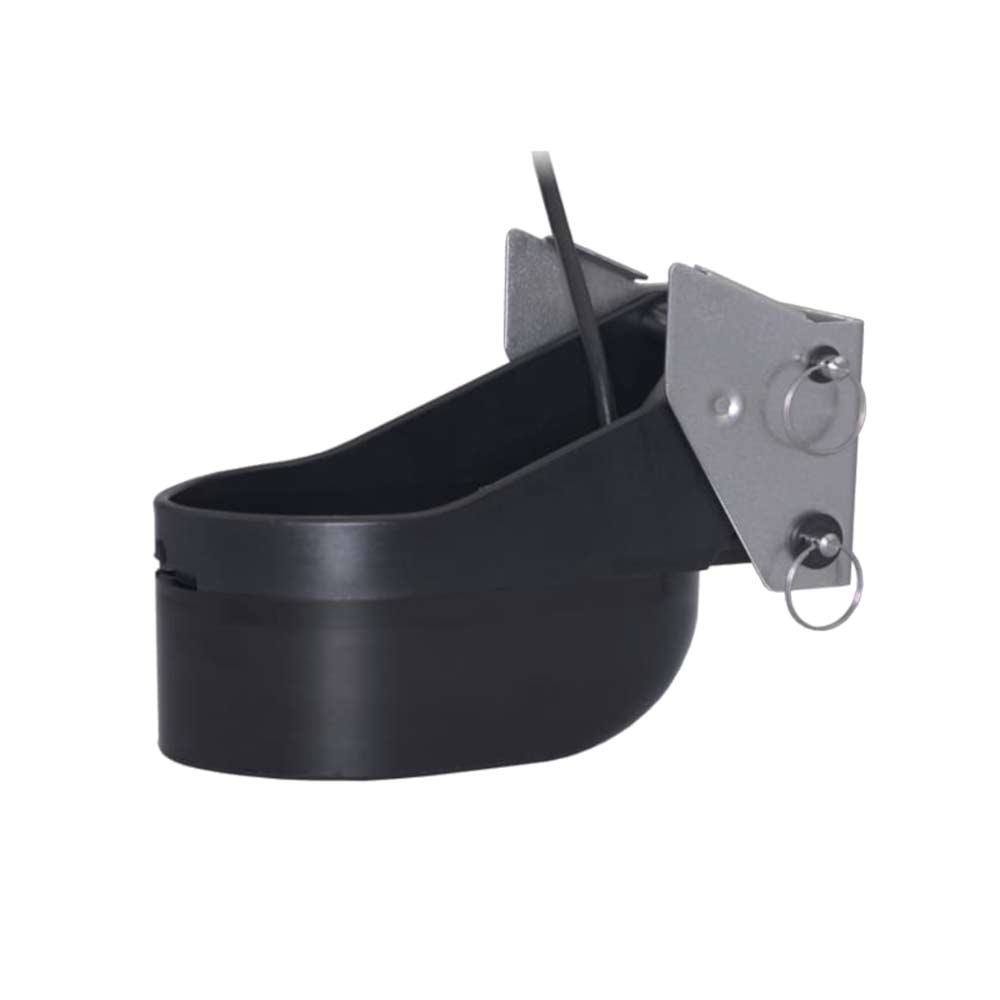

Get more coverage under your boat with Airmar’s unique wide-beam, low and high-frequency, Chirp-ready TM275LHW. The high band operates across a frequency range of 150 to 250 kHz and has a fixed 25° beam for all frequencies which results in superior resolution. The constantly wide beam provides twice the coverage and clear fish arches on the display compared to most high-frequency, narrow-beam transducers.

The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500'). The low-frequency band and 1 kW of power also support great deep-water performance. Get the best of both worlds with Airmar’s Chirp-ready transducer with wide-beam coverage.

The Garmin TM275LHW transducer is well-suited for game fishing due to several key features:

1. High-Wide CHIRP Technology: The TM275LHW utilizes CHIRP technology, which provides greater detail and resolution of fish, structures, and bottom contours compared to traditional sonar. The high-frequency range (150-250 kHz) offers excellent target separation and definition.
2. Dual-frequency Capability: The transducer operates at both low and high frequencies, allowing anglers to see deeper into the water column while also getting detailed images of fish and structures in the shallow to mid-depth range. This dual-frequency operation is particularly useful for game fishing, where fish can be found at various depths.
3. Wide Beamwidth: The wide beamwidth (25°) covers a larger area, increasing the chances of detecting fish and other targets. This is especially beneficial in open waters where game fish can be widely dispersed.
4. High Power Output: With a power rating of 1 kW, the TM275LHW can transmit signals deep into the water, making it effective for locating fish at greater depths, which is often necessary in game fishing.
5. Clearer Images: The advanced CHIRP technology and high power output result in clearer, more detailed sonar images, helping anglers distinguish between different types of fish and underwater structures.
6. Durability and Reliability: Built to withstand harsh marine environments, the TM275LHW is rugged and reliable, ensuring consistent performance even in challenging conditions.

These features make the Garmin TM275LHW transducer a powerful tool for game fishing, enhancing the ability to locate and catch target species effectively.

• TM275LHW transducer
• Transom bracket assembly kit

• Depth and fast-response water-temperature sensing
• 1 kW of power for great deep-water performance from the low frequency
• Low frequency: 42 to 65 kHz | 25° to 16° beamwidth | Maximum depth of 914 m (3000')
• High frequency: 150 to 250 kHz. | 25° constant beamwidth | Maximum depth of 152 m (500')
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• High wide beamwidth yields more coverage for detecting fish in the upper-water column
• Stainless steel, kick-up bracket locks in the “up” position and will not damage the transom
• SEALCAST, seamless, urethane housing for long life in the water
