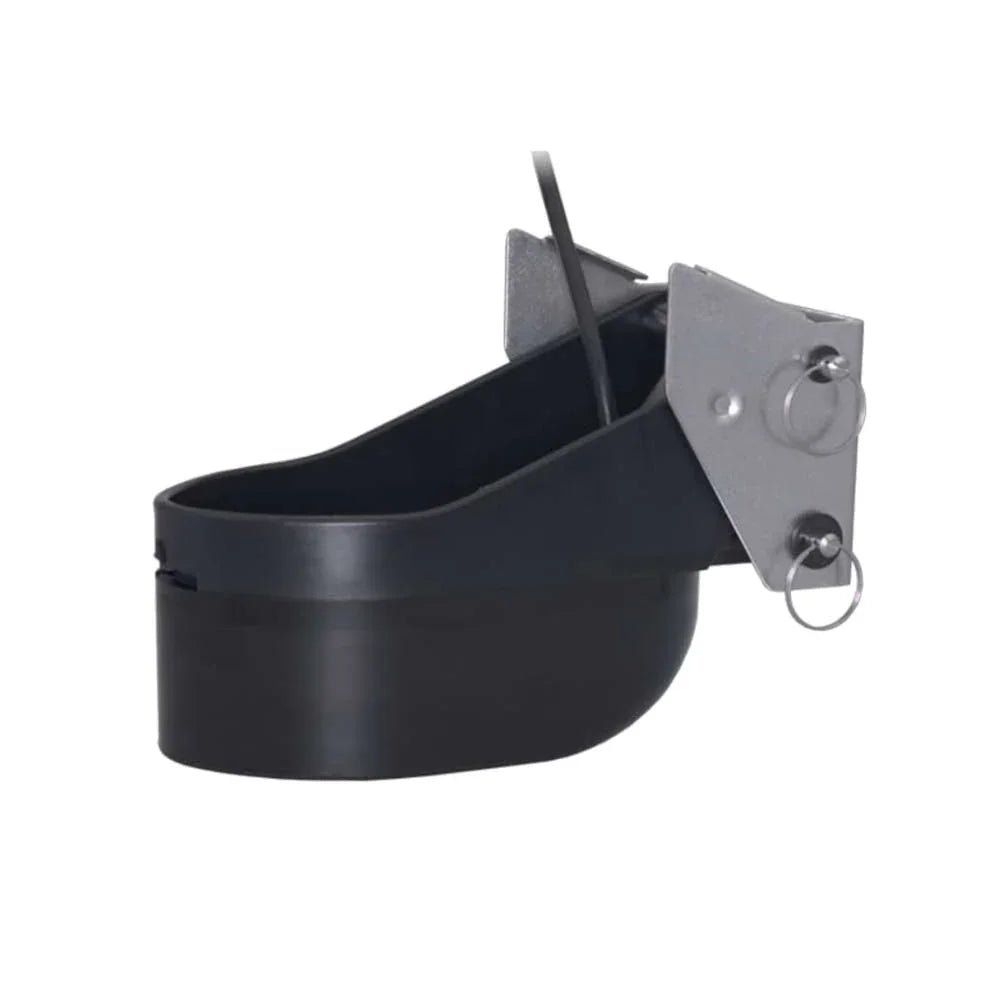

Airmar TM265LH 1KW CHIRP Transducer


Tax included.

The Airmar TM265LH 1KW dual channel CHIRP transducer with Garmin 12pin plug is a top choice for deep-water fishing in NZ. Benefit from depth readings up to 900m and spot fish up to 500m with Low CHIRP technology. Built with expertise, this transducer delivers optimal performance.

Estimated delivery 2-5 working days.

Secure and trusted checkout with

  • American Express
  • Mastercard
  • Shop Pay
  • Visa


We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz. The TM265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

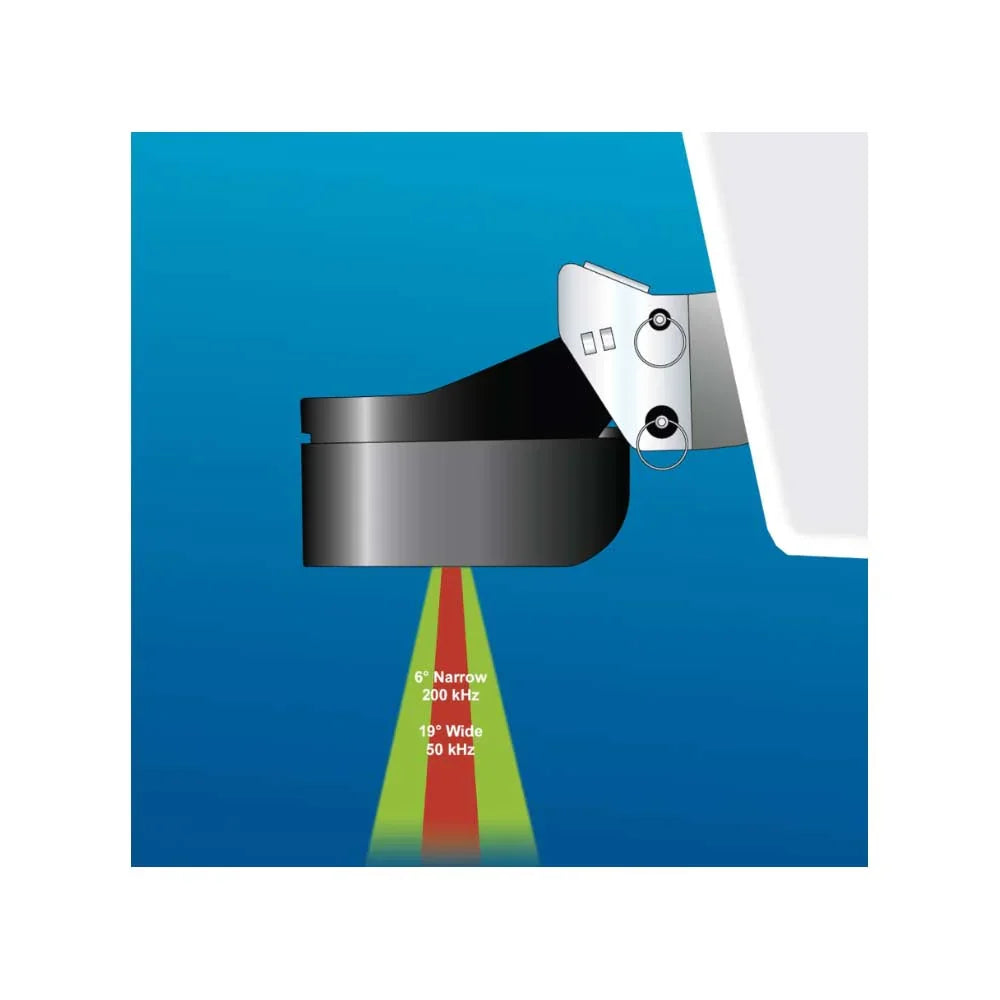

Airmar’s TM265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beam—perfect for picking apart structure and pinpointing tight-holding fish in structure.

  • Depth and fast-response water-temperature sensing
  • 1 kW of power for great deep-water performance

Low frequency: 42 to 65 kHz

  • 25° to 16° port-starboard beamwidth
  • Maximum depth of 914 m (3000')

High frequency: 130 to 210 kHz

  • 10° to 6° beamwidth
  • Maximum depth of 304 m (1000')

  • 103 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
  • Transom mount, stainless steel bracket for installation on boats of all propulsion types
  • SEALCAST™, seamless, urethane housing for long life in the water

Whats in the box

  • TM265LH transducer
  • Transom bracket assembly kit
