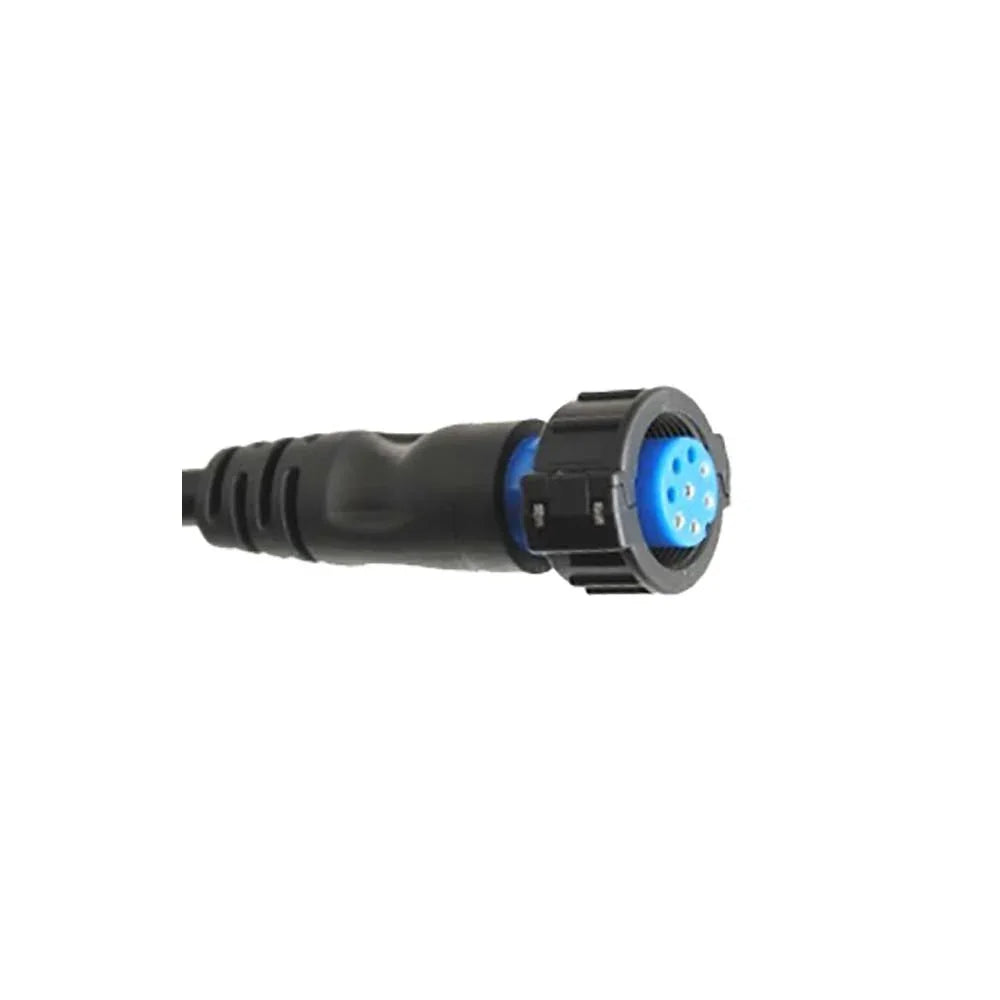

Airmar TM185M 1KW CHIRP Transducer, Garmin Connector


Tax included.

The transom mount Airmar TM185M transducer with a Garmin plug is a high-quality transducer designed for use with Garmin fishfinders and chartplotters. Featuring Medium CHIRP technology, it offers exceptional clarity and depth capability. A popular choice with the single channel CHIRP multifunction displays like the GPSMAP 953XSV.

Estimated delivery 2-5 working days.

Secure and trusted checkout with

  • American Express
  • Mastercard
  • Shop Pay
  • Visa

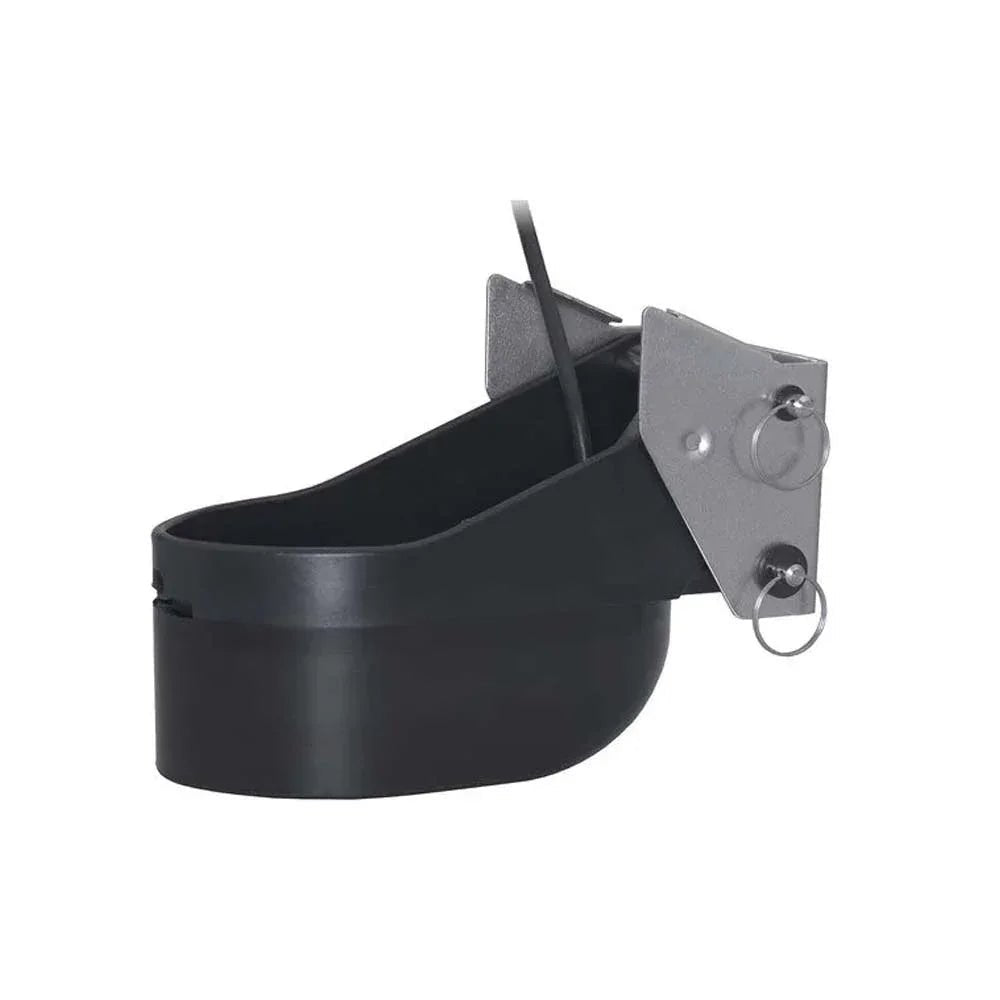

Airmar’s TM185M is a transom-mounted, Chirp-ready transducer designed for offshore fishing and freshwater anglers spending their time in shallow to mid-range depths. The medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Medium frequency also provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths down to 457 m (1500') and gives ultra-clear target resolution.

  • Depth and fast-response water-temperature sensing
  • 1 kW of power with a maximum depth of 457 m (1500')
  • Medium frequency: 85 to 135 kHz

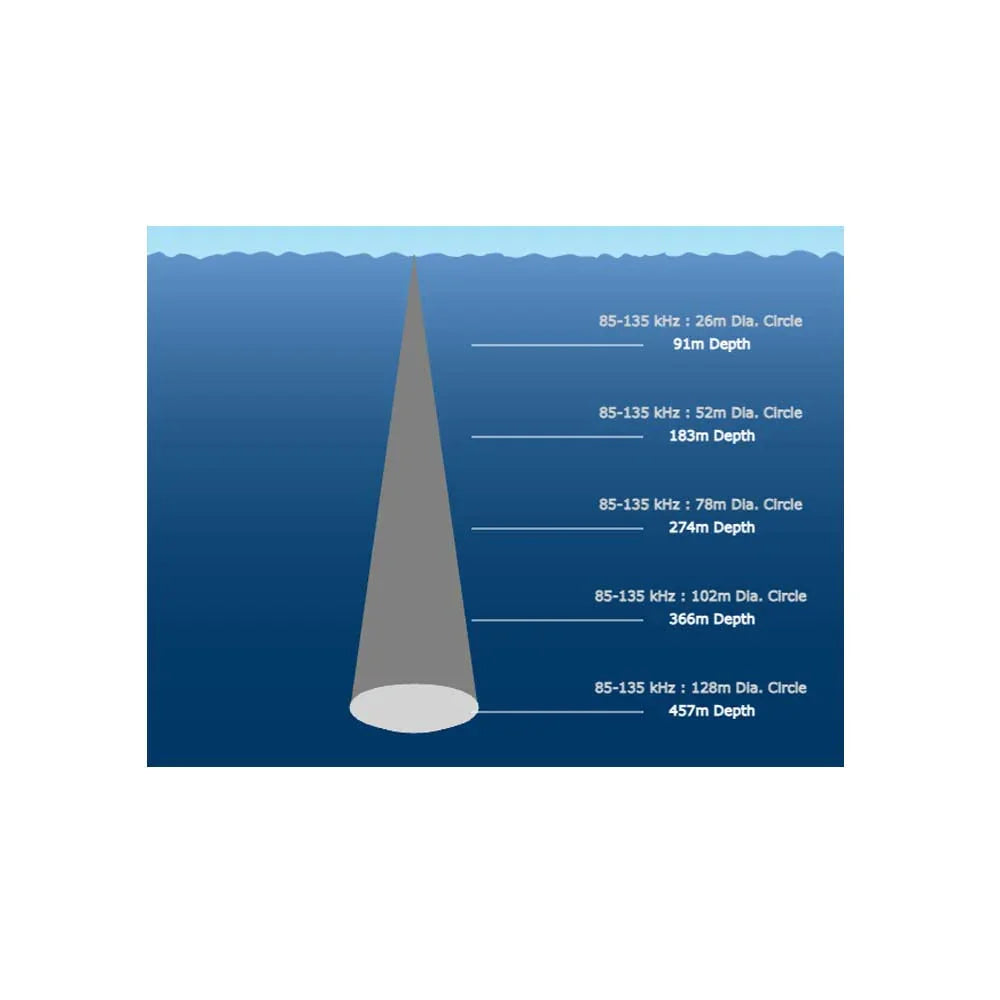

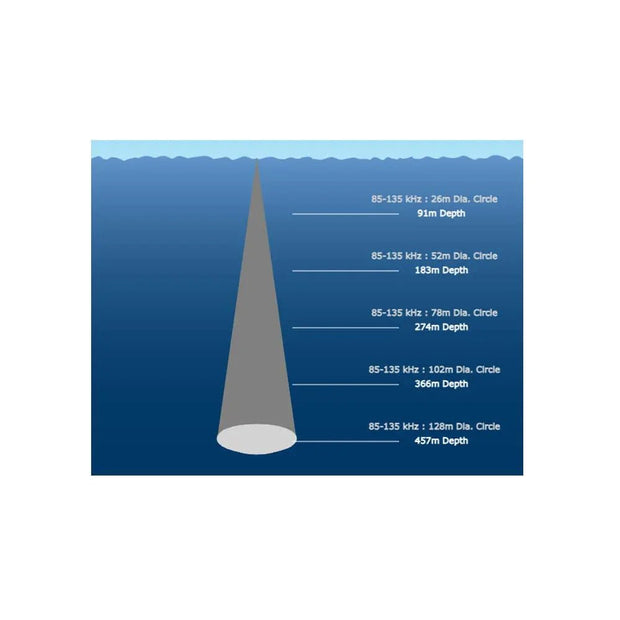

  • 16° to 11° beamwidth
  • Covers popular fishing frequencies of 88 and 107 kHz plus everything else in the bandwidth
  • Stainless steel bracket for installation on outboard or inboard/outboard powered boats
  • SEALCAST™, seamless, urethane housing for long life in the water

Whats in the box

  • TM185M 1KW transducer
  • Transom bracket assembly kit
