Sionyx Nightwave Marine Night Vision Camera - Black

$4,899.00

Tax included.

Navigate safely in complete darkness with the Sionyx Nightwave, an ultra low-light marine camera featuring SIONYX’s patented Black Silicon CMOS sensor. Designed to detect obstacles and debris even in moonless starlight, Nightwave enhances safety without the need for bright white lights or expensive thermal imaging.

With an IP67 rating, it's built for harsh marine environments. Its flexible mounting and video streaming options allow seamless integration with major MFDs or live viewing on your mobile device—giving you clear colour digital night vision from any vessel.

Estimated delivery 2-5 working days.

Secure and trusted checkout with

  • American Express
  • Mastercard
  • Shop Pay
  • Visa

Description

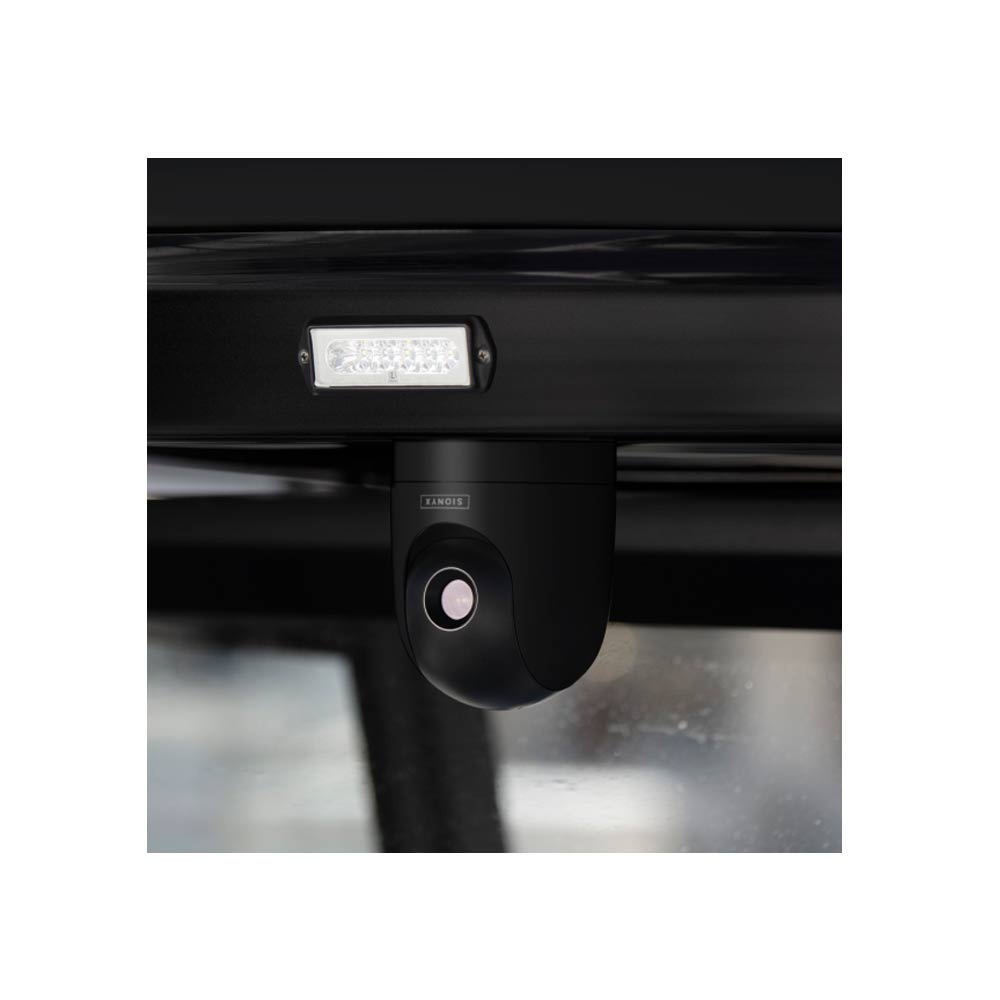

Sionyx Nightwave Ultra Low-Light Marine Camera

Enhance your nighttime navigation with the Sionyx Nightwave, an ultra low-light marine camera featuring SIONYX’s patented Black Silicon CMOS sensor. With <1 mlx sensitivity, it allows you to see beyond human eyesight, detecting obstacles and debris in complete darkness—no need for white light or expensive thermal imaging.

Designed for maximum situational awareness, Nightwave’s 44º field of view helps you spot markers, vessels, and hazards with ease. Built for the harshest marine conditions, it boasts an IP67 rating, dry nitrogen purging to prevent lens fogging, and resistance to water, sand, salt, and dust.

Seamlessly connect Nightwave to major MFDs or stream live video to the new SIONYX mobile app, giving you crystal-clear color digital night vision on any vessel. Navigate with confidence—anytime, anywhere.

Whats in the box

  • Sionyx Nightwave Ultra Low Light Marine Navigation Camera
  • Power/video cable
  • BNC to RCA adapter
  • 2A inline fuse
  • Removable mounting base
  • Mounting hardware
  • Mounting gasket
  • Mounting template

Specifications

Camera

  • Sensor type: XQE1350 BSI CMOS
  • Resolution: 1280 x 1024
  • Frame rate: 60Hz
  • Horizontal FOV: 44 degrees
  • Visible spectrum: 400 - 1200NM
  • Focus range: 10m to infinity
  • Lens: 16mm F/1.4

System

  • Video out: NTSC
  • Video connection: SMA/BNC/RCA
  • Wireless communications: WiFi + Bluetooth
  • Power in: 12V DC
  • Power connection: Tinne copper wire

Environmental

  • Ingress protection: IP67 water/dust resistant
  • Shock and vibration: IEC60945 V15G, H:9G], IK08
  • Operating temperature: -20deg C to +50deg C
  • Storage temperature: -20deg C to +80deg C

Range Performance

  • Detect man-sized object: 150m clear weather 1/4 moon

Physical

  • Weight: 870g
  • Dimensions: 127 x 127 x 152mm
  • Mounting options: Tripod or Rammount
  • Material: UV resistant polycarbonate
